TDP Tacho Generator

Description

TDP

Robust heavy-duty tacho generator for industrial drives

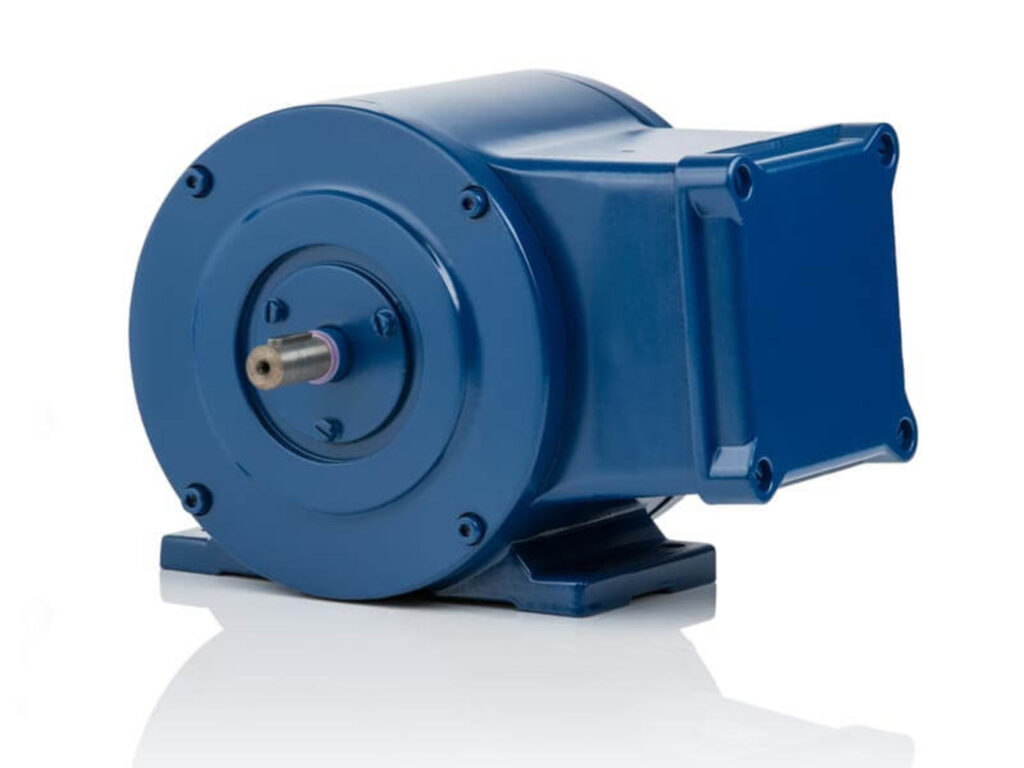

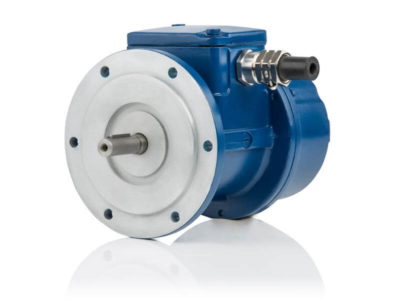

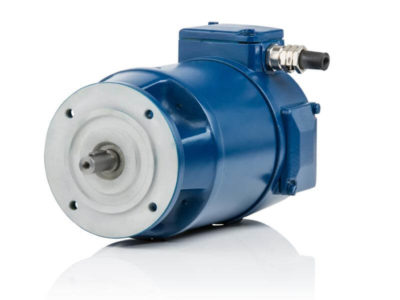

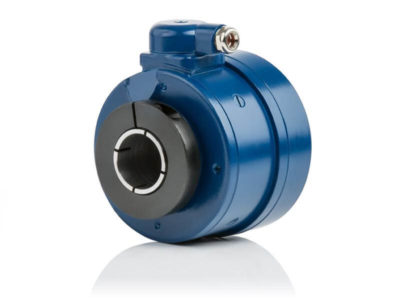

Solid shaft (flange or foot mounting), hollow shaft (A4 or hollow shaft type tacho generator)
Output signal with high-precision linearity 10-500 V / 1000 rpm
Application suitable voltage version
Options: Second shaft end, temperature compensation, attachment/combination with further encoders or overspeed switches

Analog signal

Description

Proven heavy-duty tacho generator TDP

TDP Tacho generators are analog transducers for instrumentation and control technology. The permanently excited tacho generators form the speed with which they are driven to a voltage proportional to that speed. Thanks to their robust design and construction TDP tacho generators are suitable for larger industrial drives. Depending on the requirements the tachogenerators are produced in customized sizes and connections as well as in a variety of voltage versions. TDP tacho generators are available with IP rating IP55 to IP67.

Technical Data

Output	Up to 100 W
Speed	Up to 9000 rpm
Torque	Up to 1 Nm
Voltage	Up to 500 V
Current	Up to 2.5 A
Electrical connection	Terminal box
Degree of protection	Up to IP67
Device options	Double tacho-generators (2 electrically isolated windings, a common magnetic system) Double tacho-generators (2 electrically isolated windings, two separate magnetic systems) Magnetic shunt ring to adjust voltage during operations Humid and tropical protection Reduced voltage tolerance Winding construction for no-load voltage possible (on request) Temperature compensation up to +100 °C
Mechanical options	Second shaft end Special sizes in inches possible
Special features and certificates	UL/CSA (TDP 0,7)
