For Encoder Mounting

Description

Flange adapter shafts

Attachment to shaft without centering thread
Ideal for retrofitting and replacing other shafts
Adapter shaft easily adjusted
Options: Certified safety component to DIN EN ISO 13849-2 (PL e) and isolated version

Description

Flange adapter shafts

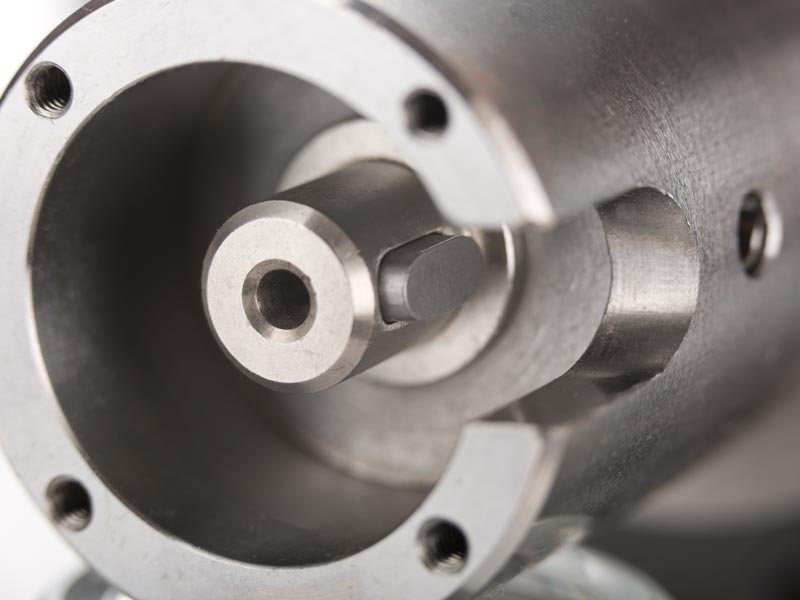

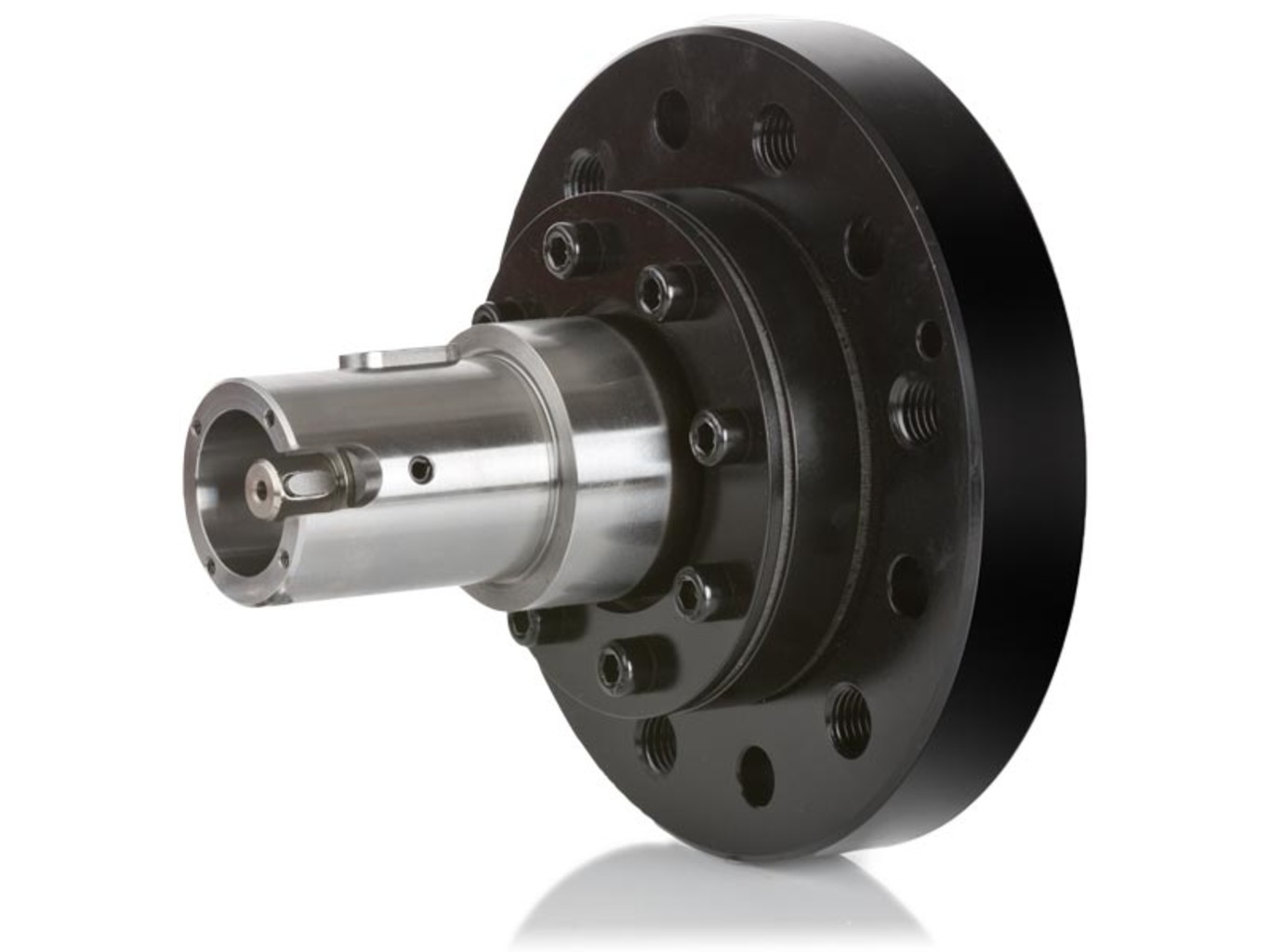

Flange adapter shafts facilitate the convenient, simple and stable attachment of hollow shaft encoders to large shafts without a centering thread. Depending on the on-site situation they are attached to the front face of the application shaft with external centering or internal centering; consequently, they are ideal as retrofitting and replacement solutions. If required, they are also available as certified safety components with fault exclusion to DIN EN ISO 13849-2 (PL e) and as an isolated version to shield against shaft currents.

Technical Data

Product usage	Mounting hollow shaft encoders to shaft with large diameter: External centering customer shaft (flange-adapter shaft with internal centering) Internal centering customer shaft (flange-adapter shaft with external centering) Possible for all encoder installation positions (for example, shaft facing up/down).
Mounting type	Following inspection/agreement: External centering customer shaft: Centering diameter approx. Ø 28-350 mm (encoder series 4/40/41) Internal centering customer shaft: Centering diameter approx. Ø 30-290 mm (encoder series 4/40/41) External/internal centering customer shaft: Centering diameter approx. Ø 50-200 mm (encoder series 5/6/60) Custom design customer shaft possible up to centering diameter Ø 500 mm or as per customer preference
Mounting accuracy	Calculated individually case-by-case /design as per consultation
Maximum rotation	Calculated individually case-by-case /design as per consultation
Temperature range	Calculated individually case-by-case /design as per consultation
Shock resistance	Calculated individually case-by-case /design as per consultation
Vibration resistance	Calculated individually case-by-case /design as per consultation
Insulated against currents	Yes (optional)
Mechanical options
Special features and certificates	Optional: Designed as safety component with fault exclusion to DIN EN ISO 13849-2 (up to PLe), with CE declaration of conformity
