Description

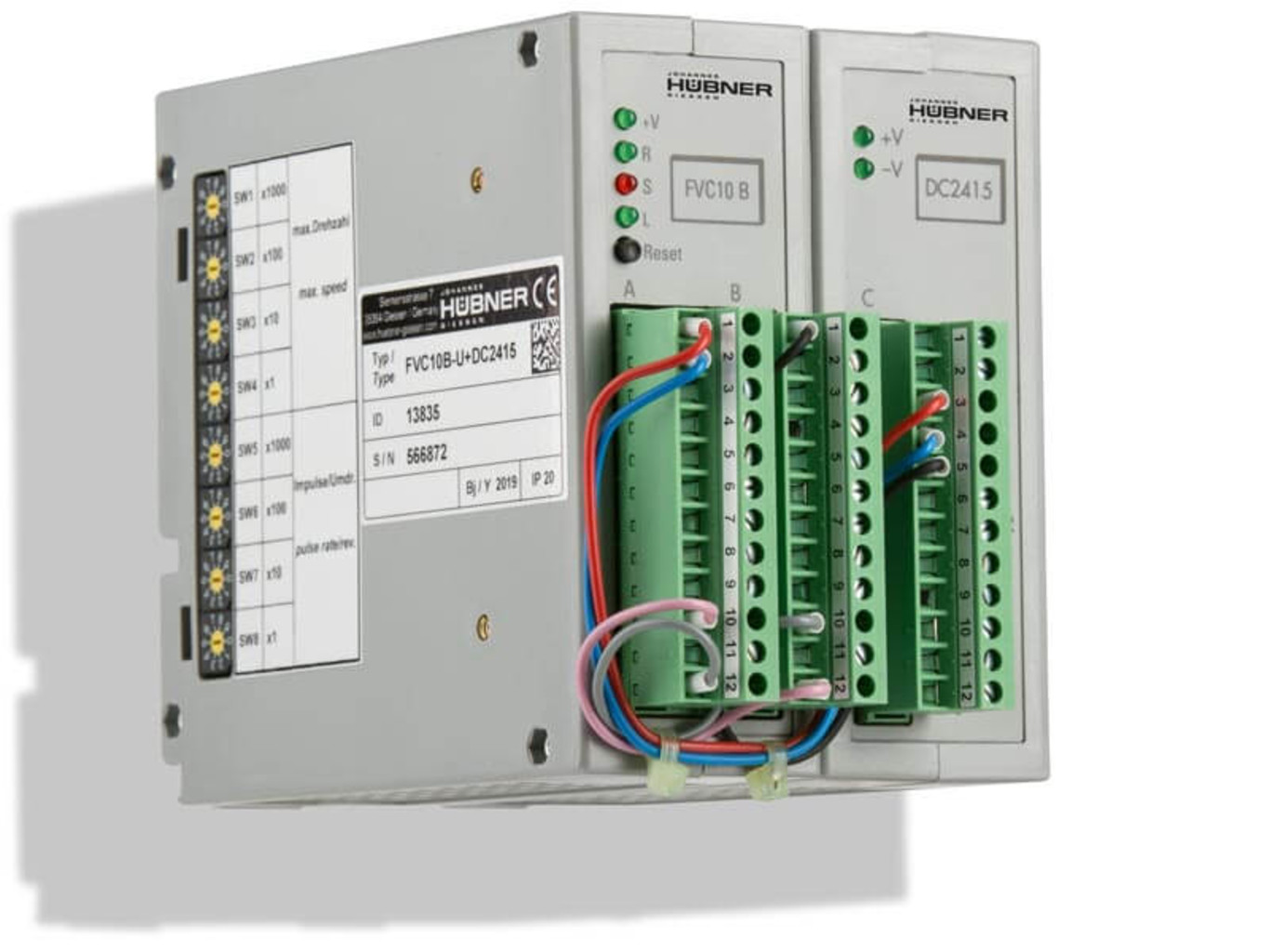

FVC 10
Frequency-voltage converter for signals: HTL / TTL → analog
- Convert digital encoder signals to analog signals
- Ideal for controllers with analog inputs
- Configurable by means of switches without configuration software
- Options: Overspeed notification/voltage monitoring
Frequency-voltage converter / signal converter
Frequency-voltage converters are utilized to convert output signals from incremental encoders in a speed-proportional and direction-of-rotation dependent DC voltage or rather direct current. The final speed and pulse rate are set via four coding switches respectively. The resulting value is converted and fed to the analog outputs.
Technical Data
| Product usage | Convert encoder signal outputs to analog (0…±10 V, 0…±20 mA, +4…+20 mA) |
| Supply voltage | ±15 VDC (optional 24 VDC) |
| Signal input | Incremental encoder (5-30 V) and reset input (TTL level, 0 V)
|
| Signal output | 0 to ±10 VDC (max. 20 mA) and 3 LEDs for clockwise, counterclockwise rotation and standstill |
| Frequency range | 0 – 200 kHz |
| Casing | Module housing for standard mounting rail |
| Dimensions | Max. 90 x 118 x 136 mm |
| Device temperature range | 0 °C to +50 °C |
| Degree of protection | IP20 |
| Electrical connection | 24 pole PHOENIX COMBICON male header |
