EDU
Portable diagnostic unit for incremental encoders
- Functional test of installed incremental encoders
- Indispensable for commissioning, repairs and maintenance
- Versatile measuring and test functions
- Including rotational frequency modulation

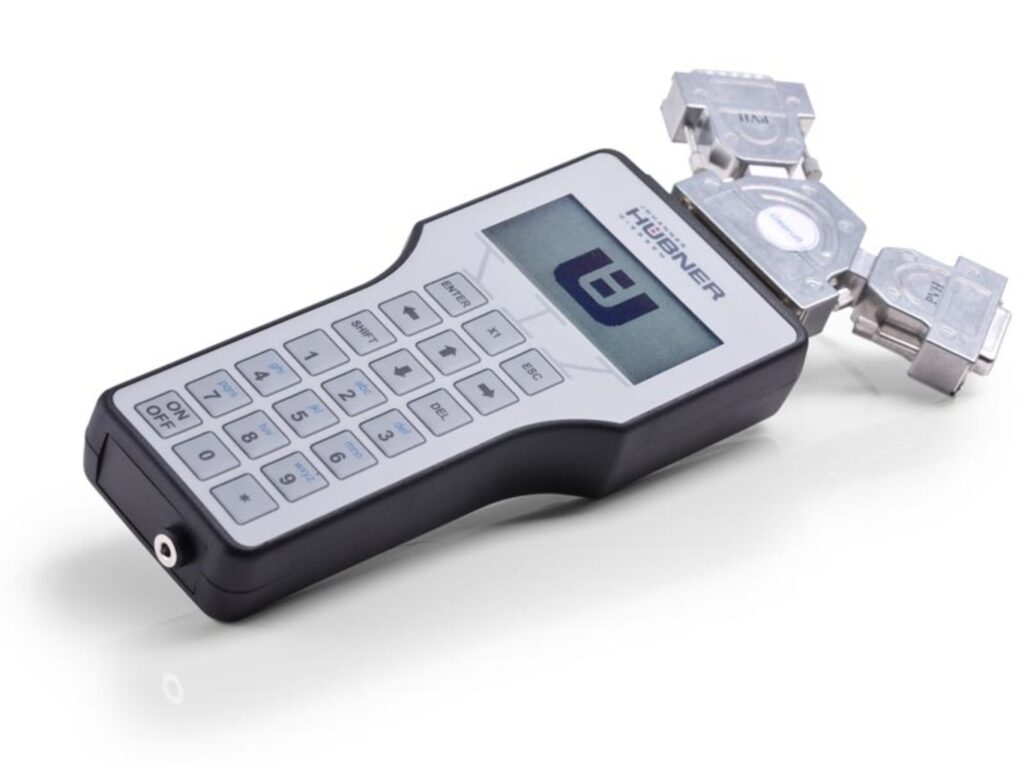

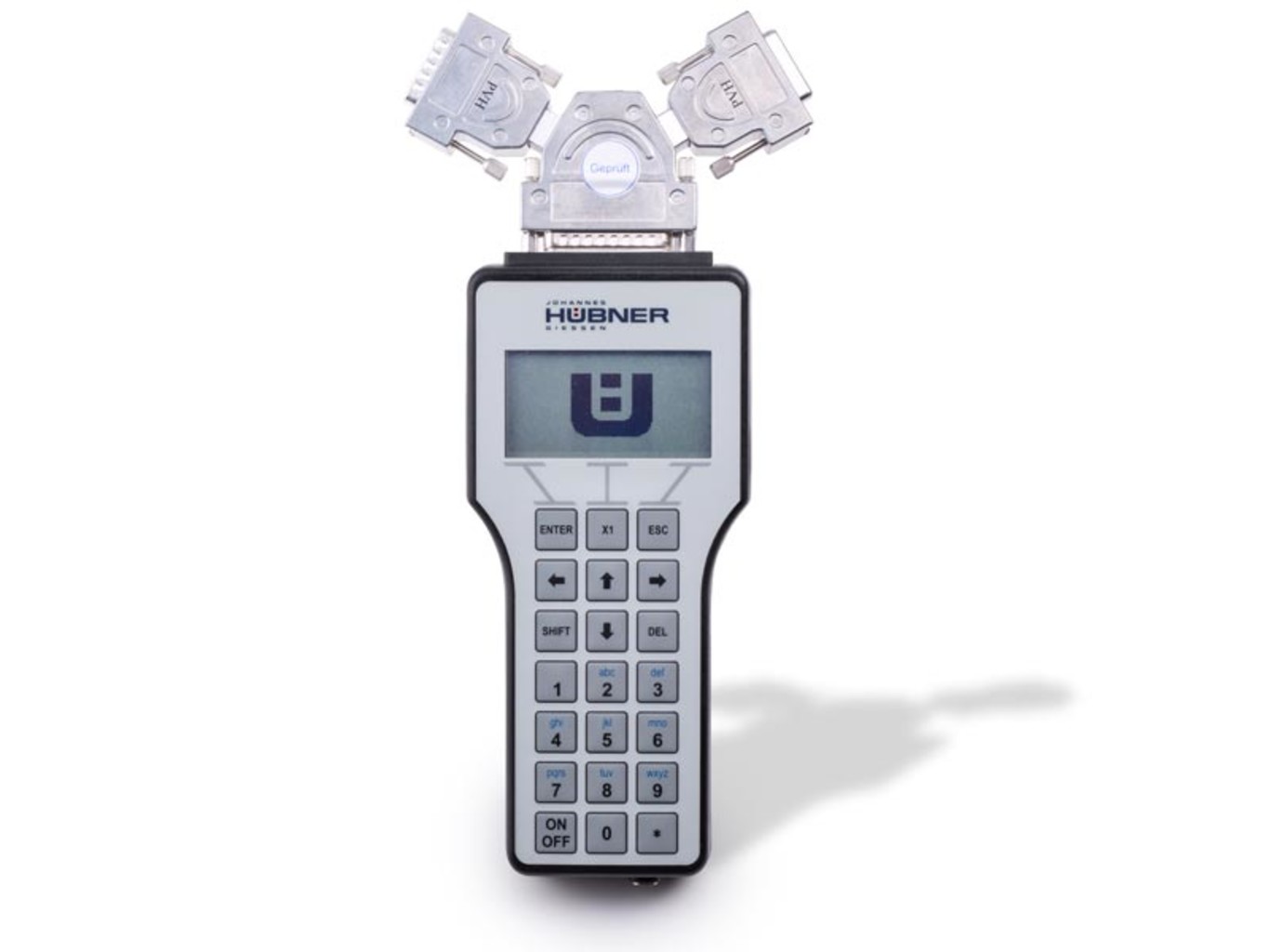

Portable diagnostic unit for incremental encoders
Encoder diagnostic units are multipurpose, portable diagnostic units designed to test the functions of installed incremental encoders on site. They are equipped with a display and offer an extensive range of functions. Amongst others these include TTL/HTL recognition, pulse rate acquisition, signal testing, frequency measurement, speed measurement as well as amplitude measurements. Furthermore, they are suitable for rotational frequency modulation measurements to assess the quality of the encoder attachment.
Technical Data
| Product usage | Perform function check of incremental encoders |
| Supply voltage | 12 – 30 V DC |
| Signal input | Incremental encoder (0-30 V) |
| Signal output | Display following data/functions:
|
| Frequency range | 0 – 100 kHz |
| Casing | Portable diagnostic unit in compact, impact resistant housing |
| Dimensions | 190 x 90 x 35 mm |
| Device temperature range | |
| Degree of protection | |
| Electrical connection | 24 pole PHOENIX COMBICON male header |
| Device options | Additional PC software to save, read and display values (included in scope of supply) |
| Mechanical options | Scope of supply of device:
|
| Special features and certificates |
