Description
For encoder mounting
Torque brackets
- Optimized output signals by compensating inaccuracies
- Maintenance-free and corrosion proof version
- Individual custom-fit design
- Options: Certified safety component to DIN EN ISO 13849-2 (PL e) and isolated version
Torque brackets

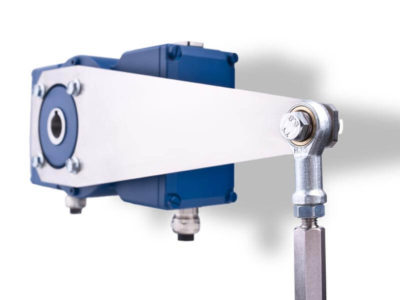

The torque brackets compensate tolerances resulting from radial eccentricity of the drive shaft, radial eccentricity resulting from backlash and axial movement of the drive shaft when attaching hollow shaft encoders. They are fitted with maintenance-free and corrosion proof high-performance link heads and torque bracket rods; the lever length and mechanical interface are customized to meet application requirements. They are also available as certified safety components, if required.
Technical Data
| Product usage | Compensate smaller mounting inaccuracies of hollow shaft encoders (radial eccentricity of the drive shaft / radial eccentricity resulting from fit tolerances / axial movement of the drive shaft) |
| Mounting type | Calculated individually case-by-case /design as per consultation:
|
| Mounting accuracy | Calculated individually case-by-case /design as per consultation |
| Maximum rotation | Calculated individually case-by-case /design as per consultation |
| Temperature range | Calculated individually case-by-case /design as per consultation |
| Shock resistance | Calculated individually case-by-case /design as per consultation |
| Vibration resistance | Calculated individually case-by-case /design as per consultation |
| Insulated against currents | Yes (optional) |
| Mechanical options | Accessories (base plates etc.) |
| Special features and certificates | Designed as safety component with fault exclusion to DIN EN ISO 13849-2 (up to PLe), with CE declaration of conformity |
