GN
Powerful DC motors for robust applications
- Voltage versions (12 / 24 / 48 VDC or higher)
- Secondary, series and compound winding versions

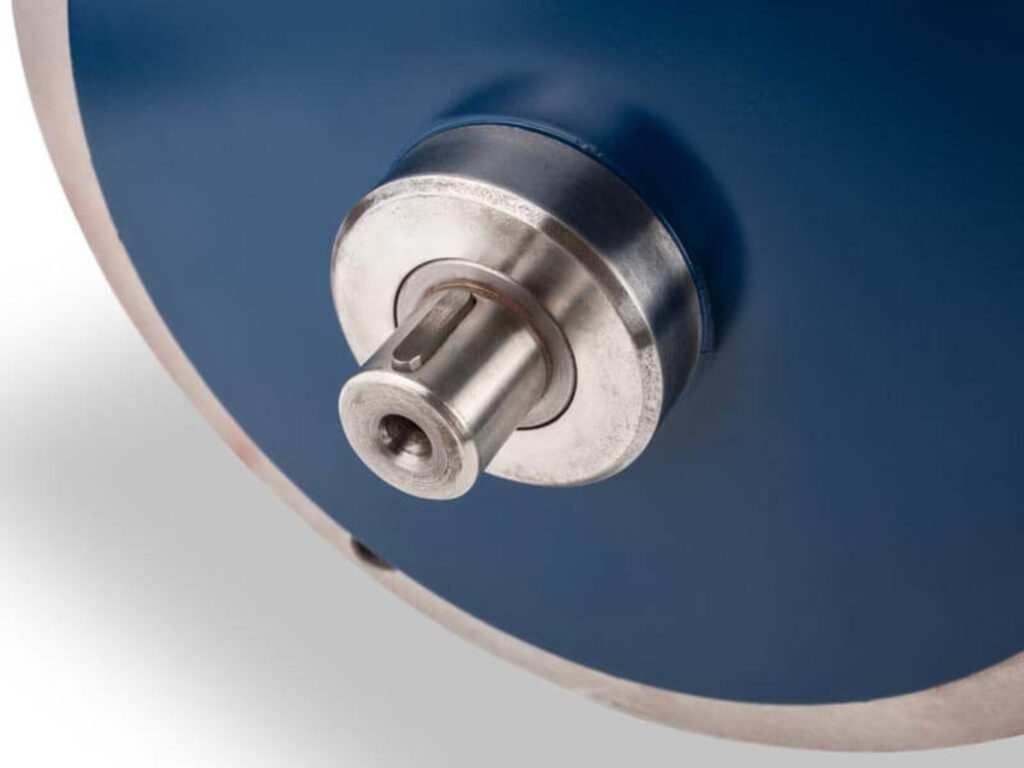

- Customized flange/shaft
- Options: Second shaft end, customized attachment and connection solutions, degree of protection up to IP68

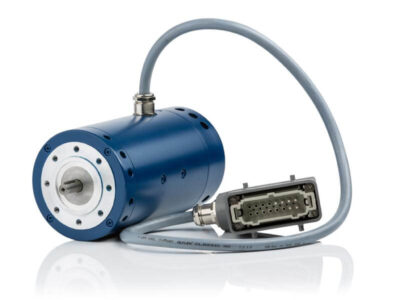

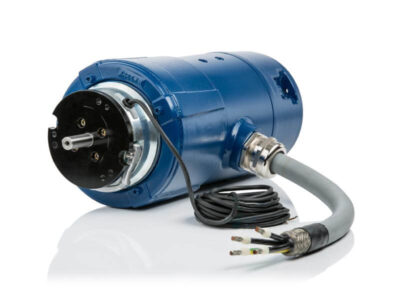

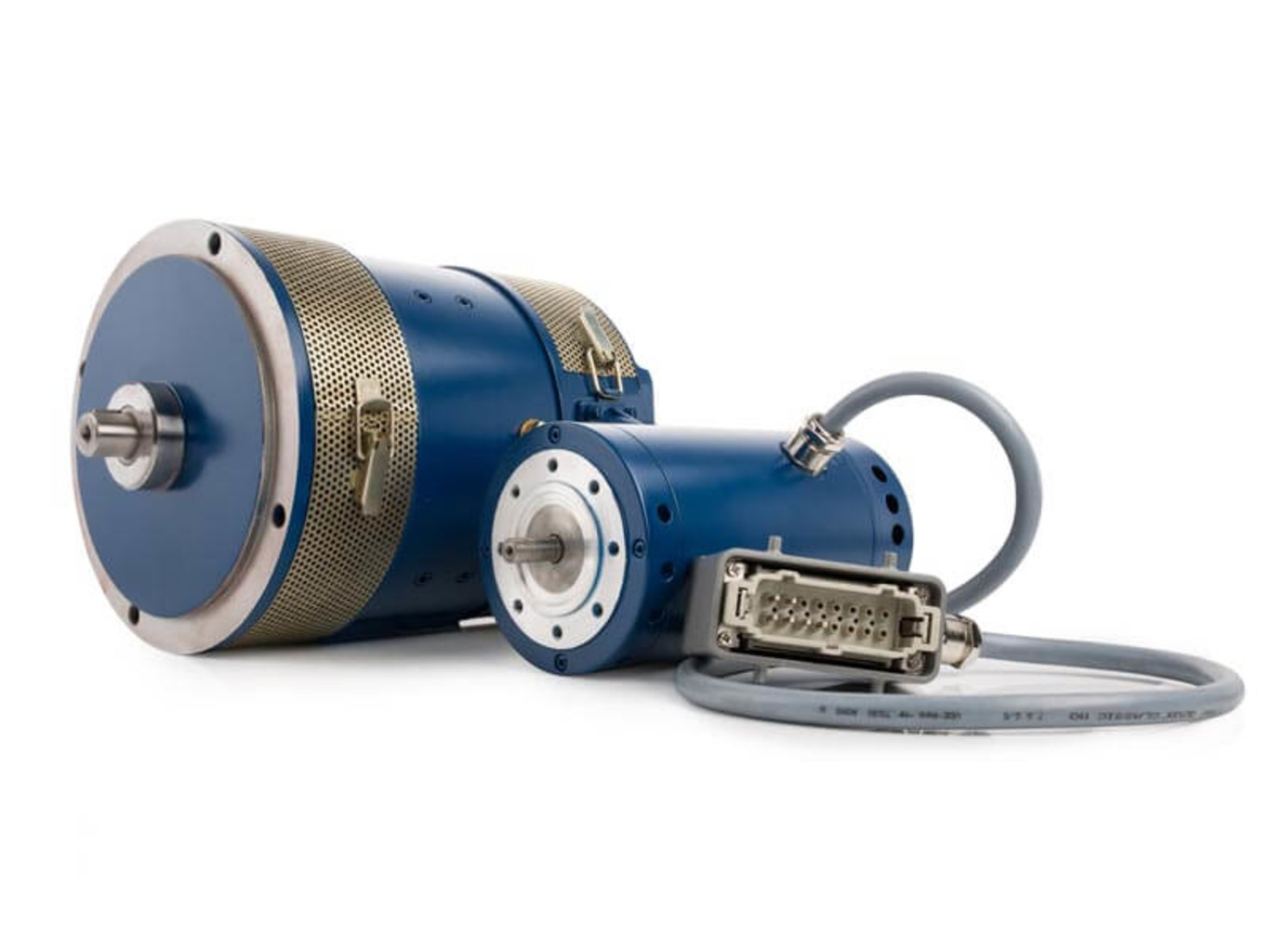

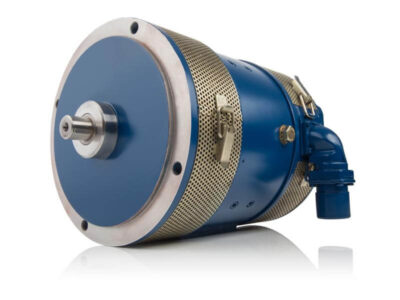

Heavy-duty DC motor
The DC motors are ideally tuned for particularly robust heavy-duty applications. The motors are suitable to draw power directly from a battery. The DC motors are available in widely different versions and are individually adapted to the respective on-site connection and attachment conditions.
Technical Data
| Output | Up to 30 kW |
| Speed | Up to 4500 rpm |
| Torque | Up to 83 Nm |
| Voltage | 12 / 24 / 48 VDC (or greater) |
| Current | Up to 500 A DC |
| Electrical connection | Terminal box / cable / custom connector |
| Degree of protection | Up to IP68 |
| Device options | Shunt / series / compound versions |
| Mechanical options | Second shaft end / custom attachment solutions (spring-operated brake etc…) |
| Special features and certificates |
